Relief Map for Exercise

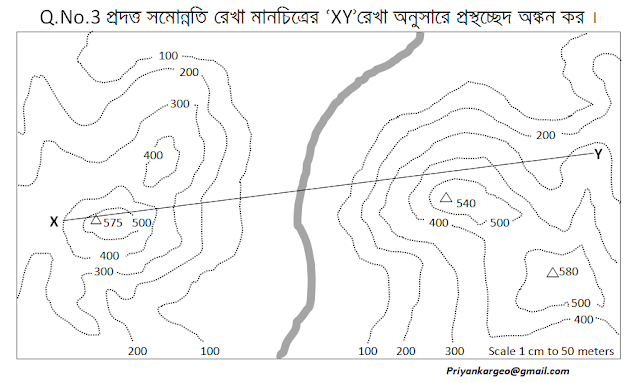

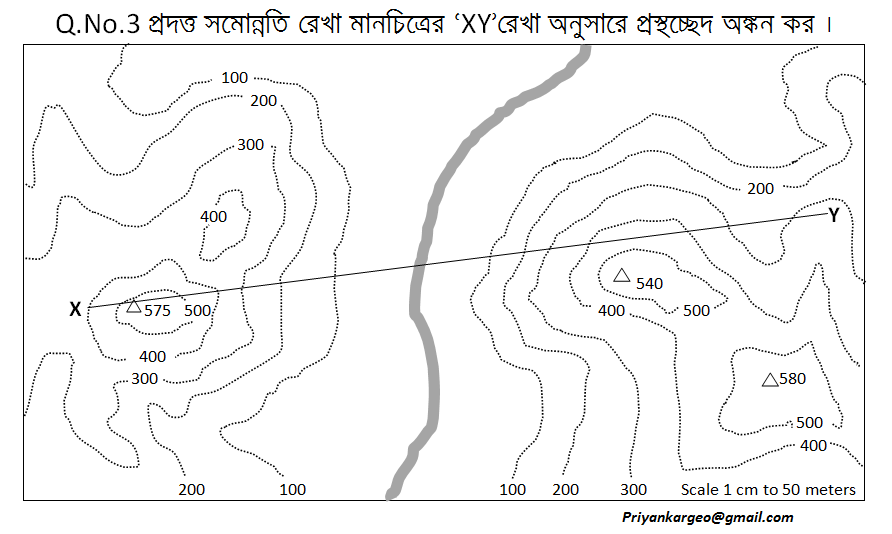

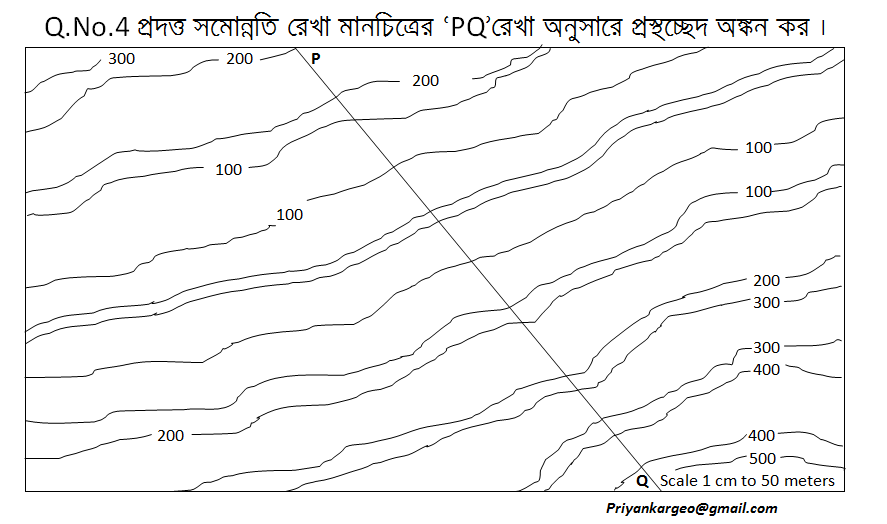

Here some Relief Maps are given to the students of Class XI for practice. Question instructions are given in Bengali. Difficult to understand (For Non Bengali), just Draw the Relief map along the section line. To draw the Cross Section just follow the Steps one by one--

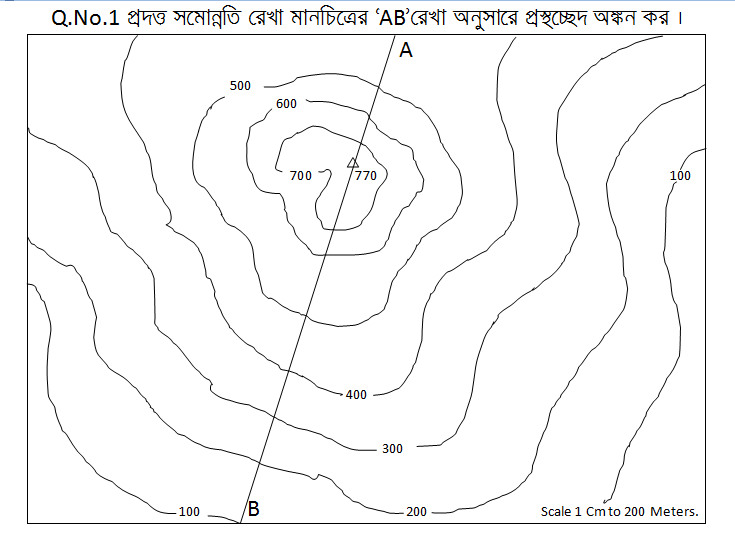

1. Hold a Strip on the section line (e.g. AB Line)

2. Demark the contour line (crossing through the section ) on the strip with their contour value.

3. Draw a horizontal line with the same length of section line.

4. Follow the map's scale and draw it both side horizontal line.

5. Hold the strip on horizontal line and demark the contour height verticalley with respect to their value.

6. Join the points with a free hand curve.
